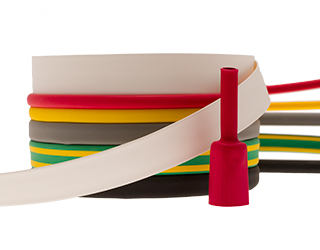

Polyolefin Sleeving and Markers
Polyolefin heat shrink tubing is a general, flexible heat shrink tubing, which can be used for a wide range of applications, including aerospace, mass transit and electronics. Applications include insulation, mechanical protection and marking/identification.
SH – Military Grade Heatshrink Polyolefin (Siegrist Orel OSH)
• Full range of colours
• 2:1 & 3:1 shrink sizes
• Operating temperature: -55°C up to 135°C
• Material conforms to SAE-AS23053/5 class 1&3
• Available in sleeving, cut sleeves or printable markers
SNH – Low Fire Hazard, Adhesive Lined Heatshrink Polyolefin (Siegrist Orel OSNH)
• Black as standard
• 2:1 shrink sizes
• Operating temperature: -40°C up to 105°C
• Product compliant to EN45545-2 & BS6853
• Product Material compliant to EN45545-2 & BS6853
• Available in sleeving or cut sleeves
SCH(125) – Commercial Grade Heatshrink Polyolefin (Siegrist Orel OSH (125))
• 6 standard colours
• 2:1 shrink sizes
• Operating temperature: -55°C up to 125°C
• Available in sleeving, cut sleeves or printable markers
• Download SCH(125) Product Data Sheet
SDW – Military Grade, Adhesive Lined Heatshrink Polyolefin (Siegrist Orel OSDW)
• Black as standard
• 3:1 shrink sizes
• Operating temperature: -55°C up to 125°C
• Material compliant to SAE-AS23053/4 class 3
• Material compliant to UL test standards
• Available in sleeving or cut sleeves
W3NH – Low Fire Hazard, Adhesive Lined Heatshrink Polyolefin
• Black as standard
• 3:1 shrink sizes
• Operating temperature: -40°C up to 105°C
• Material compliant to EN45545-2 & BS6853
• Available in sleeving or cut sleeves
• Download W3NH Product Data Sheet
SKN – Heatshrink Fluoropolymer Heatshrink (Siegrist Orel OSKN)
• Clear as standard
• 2:1 shrink sizes
• Operating temperature: -55°C up to 175°C
• Material compliant to SAE-AS23053/8
• Material compliant to UL & CSA test standards
• Available in sleeving or cut sleeves
Applications – Rapid Reference
